L-808 Wind Direction Indicator
Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code
Characteristic





                             ▪   Wind cone frame of stainless steel material, wind cone rotates flexibly

                             ▪   Includes Internally light and obstruction light, using an integrated circuit power supply, run reliably

                             ▪   Adopt the LATTIX mast, Fully meet the requirements of mast and wind resistance










Parameter

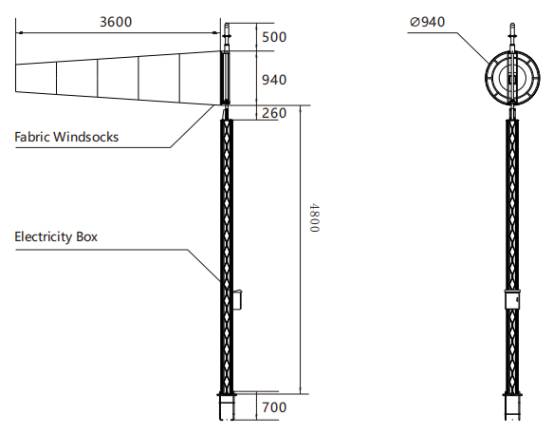

                                          MECHANICS

Throat End Opening Diameter

S-1=920mm；S-2=640mm；S-3=340mm

Effective Length

S-1=3.6m；S-2=2.4m；S-3=1.2m

Windsock Cone Attachment Tension

＞200N

Support Rigidity

L-808

                                  ENVIRONMENTAL

Operating Temperature

-40℃-+55℃

Storage Temperature

-40℃-+85℃

Wind Loading

＞140km/h

Protection Class (Dust/Liquids)

IP54（IEC60598-1）

Humidity

0～100%


                                    ELECTRICAL

Power Input (Two Options)

AC 220V  OR  2.8-6.6Aeff AC

Power Consumption (Nominal)

36W(Internally Light)+3W(Obstruction Light)

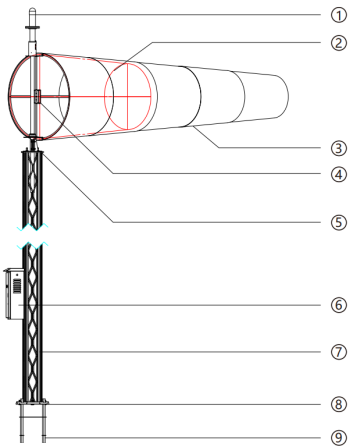

Exterior














① Obstruction Light

② Framework

③ Fabric Windsocks

④ Internally Light

⑤ Clip Block and Bottom Plate

⑥ Electricity Box (Just for AC 220V)

⑦ Supporting Structures

⑧ Flip Bottom Plate

⑨ Foundation Embedded













Accessories/accessory tools
Downloads
Order Code
Date Sheet
Product Manuals
Certificate
WCA-L808
DOWNlOAD FILES
