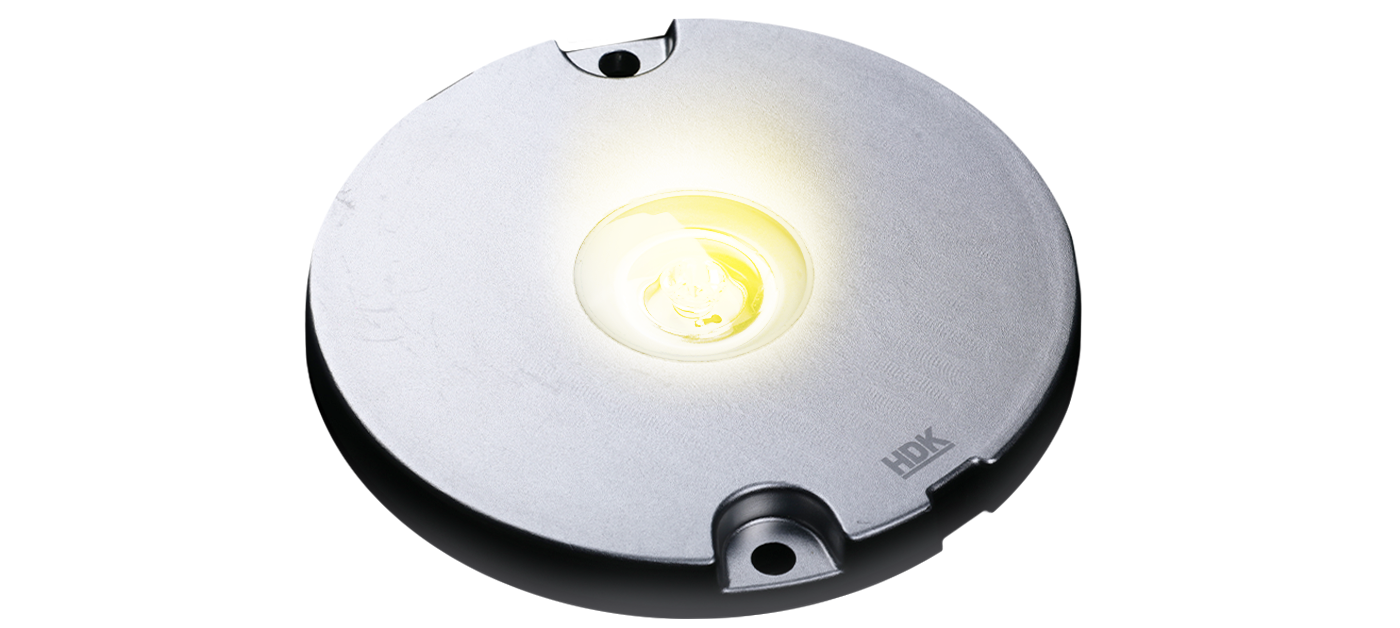

Stand Manoeuvring Guidance-Omni Yellow
Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code
Characteristic




                             ▪   Ultra-Flat surface-Only 3mm/3.5mm above surface

                             ▪   Can be used as an aircraft orientation guidance equipment and a stop position indicator.

                             ▪   Compliance with ICAO requirements

                             ▪   High electrical and optical efficiency, low power, low heat, and long life

                             ▪   Flexible power supply and control mode can be selected




Parameter




MECHANICS

Diameter

203mm

Flange Thickness

19mm

Height Above Surface


SMG-Omni 3mm / SMG-Uni 3.5mm

Static Load Resistance

14t

Shear Load Resistance

1.7t

Packing Dimensions

250mm×235mm×110mm

Net Weight

2.8kg

Gross Weight

3.1kg

ENVIRONMENTAL

Operating Temperature

  -55℃-+55℃

Storage Temperature

-55℃-+85℃

Protection Class (Dust/Liquids)

IP68 （IEC60598-1）

Humidity

0-100%

ELECTRICAL

Connection

FAA L823 Class A, TypeⅡ,Style 6, one  Connectors

Power Input

2.8-6.6Aeff AC

Power Factor (Nominal)

＞0.97

Power Consumption (Nominal)

SMG-Omni Yellow

17W

SMG-Uni Red

7W

Fail Open

Manual reset

Automatic reset



ILA-SMG-Omni Yellow





ILA-SMG-Uni Red

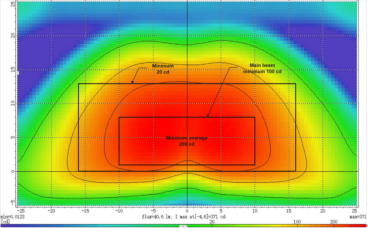

COLOR COORDINATES

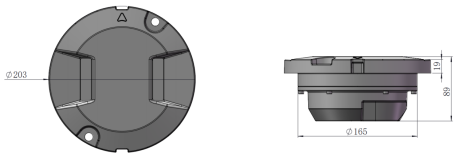

Exterior







ILA-SMG-Omni Yellow






ILA-SMG-Uni Red































                                                                             ILA-SMG-Omni Yellow






                        ILA-SMG-Uni Red


① Top Part

② Seal Ring

③ Optic Module

④ Holder

⑤ Drive Module

⑥ Bottom Pan

⑦ Cable


















                                                                                           On 8’’ Shallow Base








          On 12’’ Deep Base








Accessories/accessory tools
Downloads

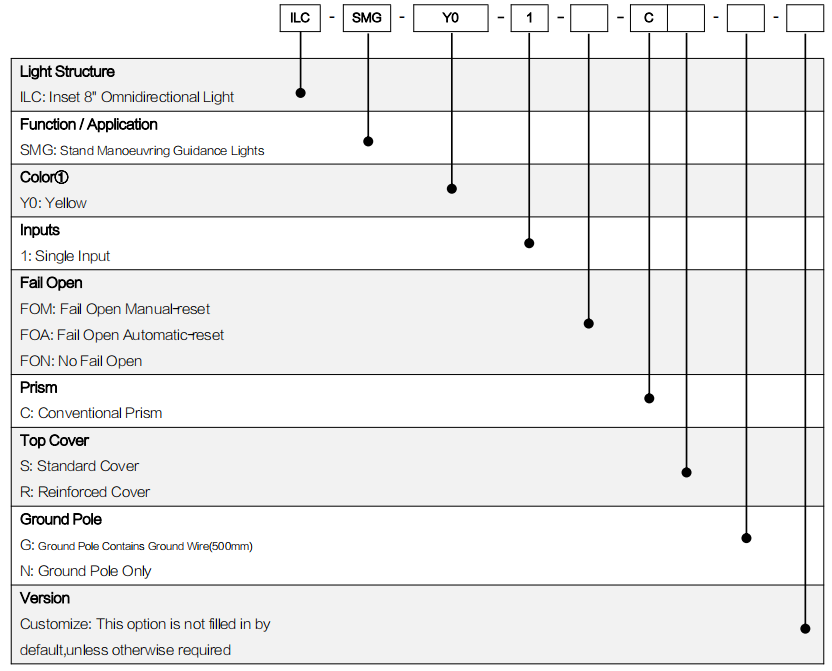

Order Code


Date Sheet
Product Manuals
Certificate
ILC-SMG
DOWNlOAD FILES
