Touchdown Zone Light(inset)

Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code

Characteristic

▪ Ultra-Flat surface-Only 3.5mm above surface

▪ Structure, reliable electrical, excellent static load and impact resistance.

▪ Construct dexterity-can fit the halogen lamp shallow base.

▪ Precise optical design and construction, effective and accurate realization of optical configuration requirements.

▪ Common with the 8” inset light-fitting components, Any component module can be replaced independently

Parameter

MECHANICS
Diameter		203mm
Flange Thickness		19mm
Height Above Surface		3.5mm
Static Load Resistance		20t
Shear Load Resistance		1.7t
Packing Dimensions		250mm×235mm×110mm
Net Weight		2.8kg
Gross Weight		3.1kg
ENVIRONMENTAL
Operating Temperature		-55℃-+55℃
Storage Temperature		-55℃-+85℃
Protection Class (Dust/Liquids)		IP68 （IEC60598-1）
Humidity		0-100%
ELECTRICAL
Connection	FAA L823 Class A, TypeⅡ,Style 6, one Connector
Power Input	2.8-6.6Aeff AC
Power Factor (Nominal)	＞0.97
Power Consumption (Nominal)	TDZ-White	18W
Fail Open	Manual reset
	Automatic reset

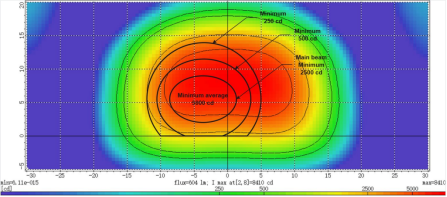

ILA-TDZ-White


COLOR COORDINATES

Exterior


① TopCover

② Sealing Ring

③ Optic Module

④ Prism Holder

⑤ Driver Module

⑥ Bottom Pan

⑦ Cable


On 8’’ Shallow Base


On 12’’ Deep Base

Accessories/accessory tools

Downloads

Order Code

ILA

TDZ

Light Structure

ILA: Inset 8" Light

Function / Application

TDZ: Runway Touchdown Zone Lights

Color- 1

W: White, N: No Output

Color- 2

N: No Output,W: White

Inputs

1: Single Input

Fail Open

FOM: Fail Open Manual-reset

FOA: Fail Open Automatic-reset

FON: No Fail Open

Prism

C: Conventional Prism

S: Sapphire Prism

Top Cover

S: Standard Cover

R: Reinforced Cover

Version

1: Version 1

ORDERING CODE NOTES

① We can provide color including

"WN","W","NW"

if you have any other requirements,we can customized. Figure1

- If you want to order "A" light, you should choose the color "WN"

- If you want to order "B" light, you should choose the color "W"

- If you want to order "C" light, you should choose the color "NW"

② Sapphire prism available as an option. Figure2 ③ Reinforced cover . Figure3


Figure 1 Figure 2 Figure 3

Date Sheet

Product Manuals

Certificate

ILA-TDZ

DOWNlOAD FILES
