Sequential Flash Light(inset) led

Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code

Characteristic

▪ Both of inset and elevated sequence flash lights use a highly efficient LED light source. Meet all kinds of use requirements

▪ Adopt special aviation connector, Cable plug is stable and durable and easy to plug.

▪ Support the emergency mode, flashing autonomously when the communication is interrupted.

▪ Support maintenance mode, The main control cabinet can be made offline to any separate control panel as the host independent work and debugging.

▪ Control cabinet LCD touch screen display, intuitive and easy to operate

Parameter

MECHANICS

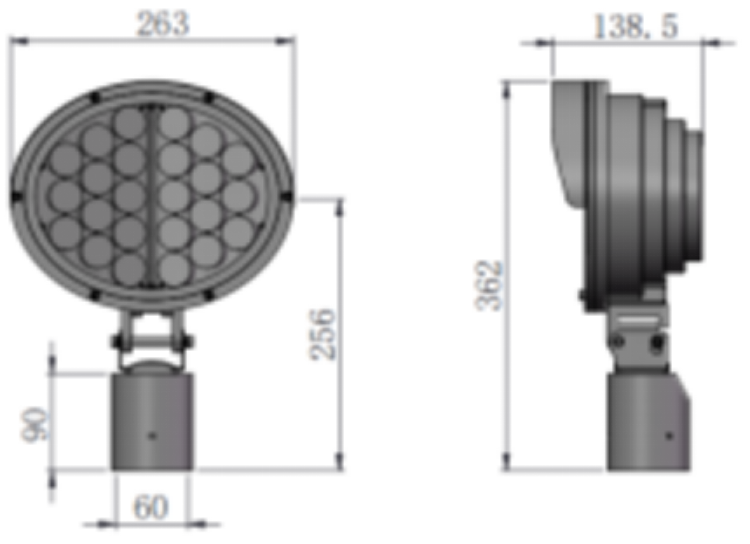

Size (Elevated)		263mm×138.5mm×362mm

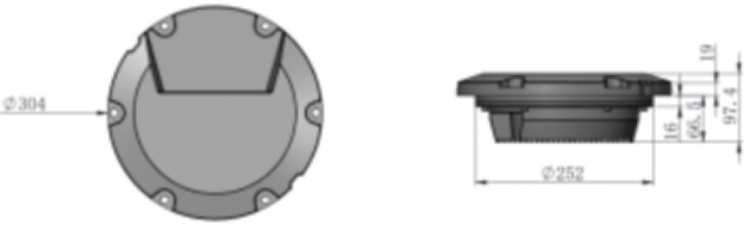

Size (Inset)		Body Diameter: 304mm ； Flange Thick: 19mm；

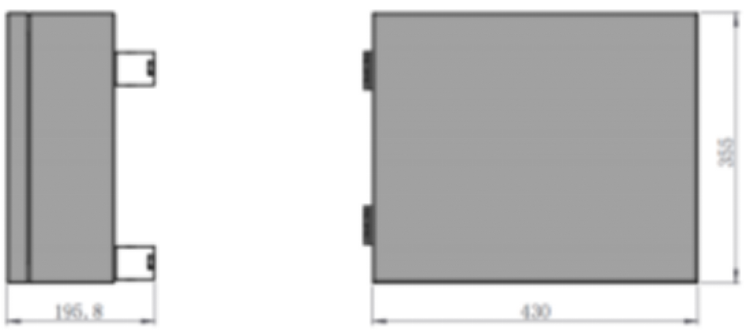

Control Box Size		430mm×355mm×196.8mm

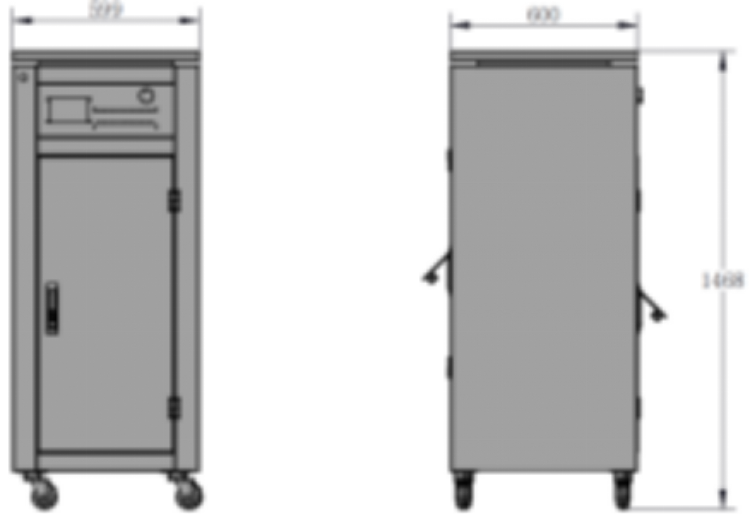

Control Cabinet Size		599mm×600mm×1468mm
Range of Elevation Angle		0°～10°
Light Net Weight		Elevated :4.2kg; Inset:6.5kg
ENVIRONMENTAL
Operating Temperature		-55℃-+55℃
Storage Temperature		-55℃-+85℃
Wind Loading		ELE-RTIL(L) ＞480km/h； ELE-SFLS(L)＞240km/h
Protection Class (Dust/Liquids)		Elevated	IP65（IEC 60598-1）
		Inset	IP68（IEC 60598-1）
Humidity		0-100%
Altitude		Suitable for an altitude greater than 2500m
ELECTRICAL
Power Input	AC 220V(±10%)，50~60Hz
Light Color	White
Flashing Rate	60 or 120 per minute
Flash Interval	0.0167 second
Power Consumption	Elevated	31W
	Inset	31W
Light Intensity	Elevated	150~450 cd
		800~2000 cd
		8000~20000 cd
	Inset	150~600 cd
		500~2000 cd
		5000~20000 cd

Exterior


Elevated


Inset


Control Box


Control Cabinet

Elevated


Inset

① Visor

② Front glass Module

③ Seal Ring

④ Optic Module

⑤ Pin Board

⑥ Rear Cover Module

⑦ Installation Adjustment Module

① Top Part

② Seal Ring

③ Optic Module

④ Pinboard

⑤ Bottom Pan

⑥ Holder

⑦ Cable Connector


On Extension Pole


On Approach Mast


On 12’’ Deep Base

Accessories/accessory tools

Downloads

Order Code

Date Sheet

Product Manuals

Certificate

ELE-SFLS&RTIL(L)-Inset

DOWNlOAD FILES
