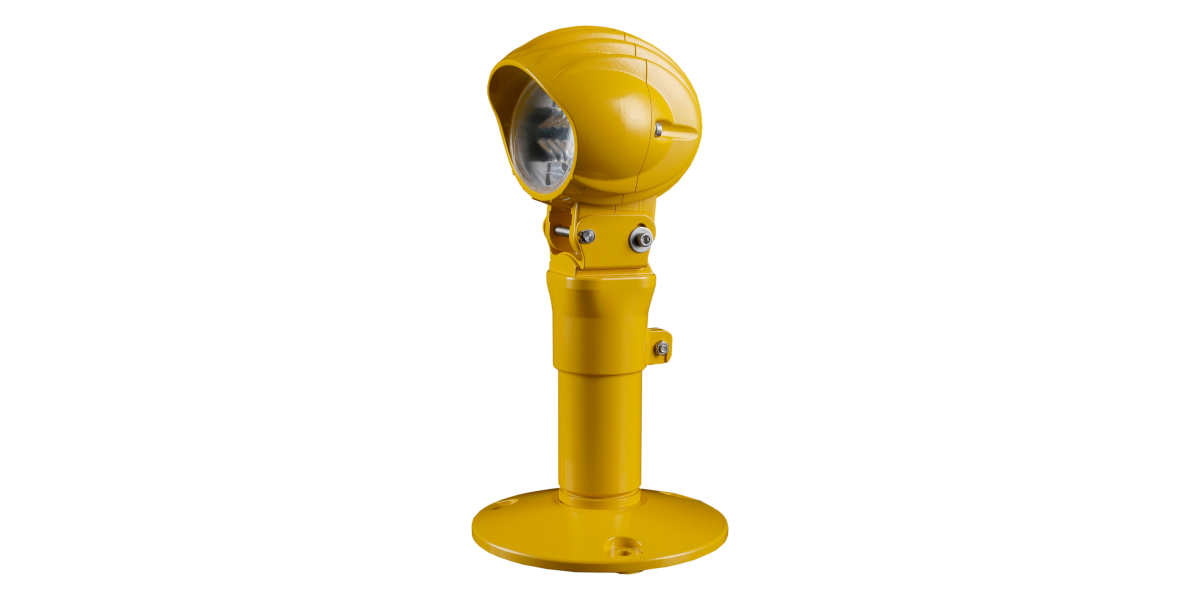

Approach Center Line Light
Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code
Characteristic





                             ▪   Unique miniaturized design for LED, structural dexterity, excellent heat dissipation

                             ▪   Unique optical system design, precision photometry, and high light efficiency

                             ▪   Independent triaxial angle adjustment with calibration instrument, high precision








Parameter

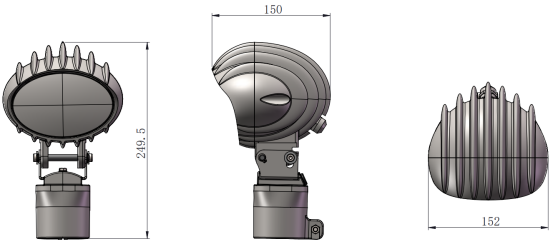

MECHANICS

Width

152mm

Height

249.5mm

Packing Dimensions

360mm×225mm×350mm( 2pcs / Package )

Net Weight

2.9kg

Gross Weight

6.4kg ( 2pcs / Package )

ENVIRONMENTAL


Operating Temperature


-55℃-+55℃

Storage Temperature

-55℃-+85℃

Protection Class (Dust/Liquids)

IP67（IEC60598-1）

Humidity

0-100%

ELECTRICAL

Connection

FAA L823 Class A, TypeⅡ,Style 1, one Connector

Power Input

2.8-6.6Aeff AC

Power Factor (Nominal)

＞0.97

Power Consumption (Nominal)


APH-White


27W


ASR-Red


15W

Fail Open

Manual reset

Automatic reset





ELA-APH-White







ELA-ASR-Red

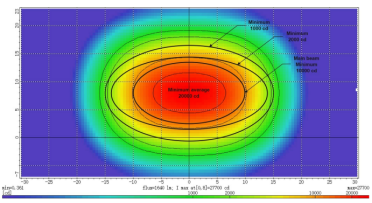

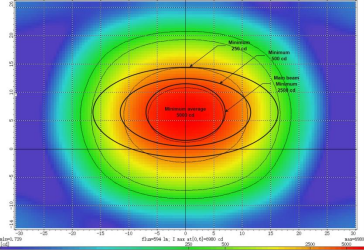

COLOR COORDINATES

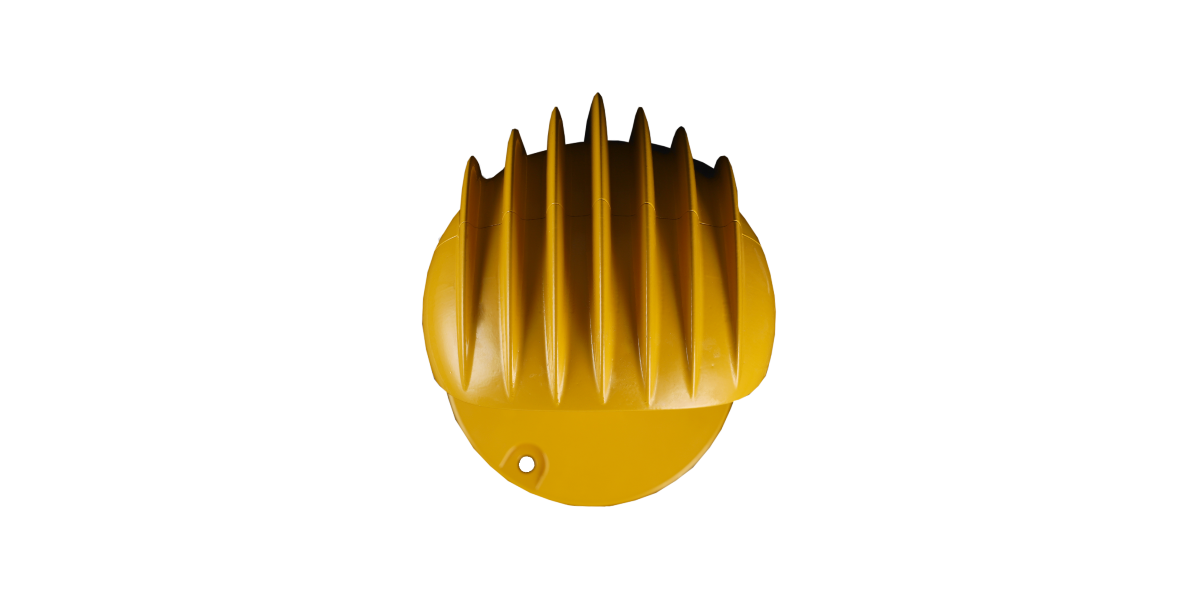

Exterior

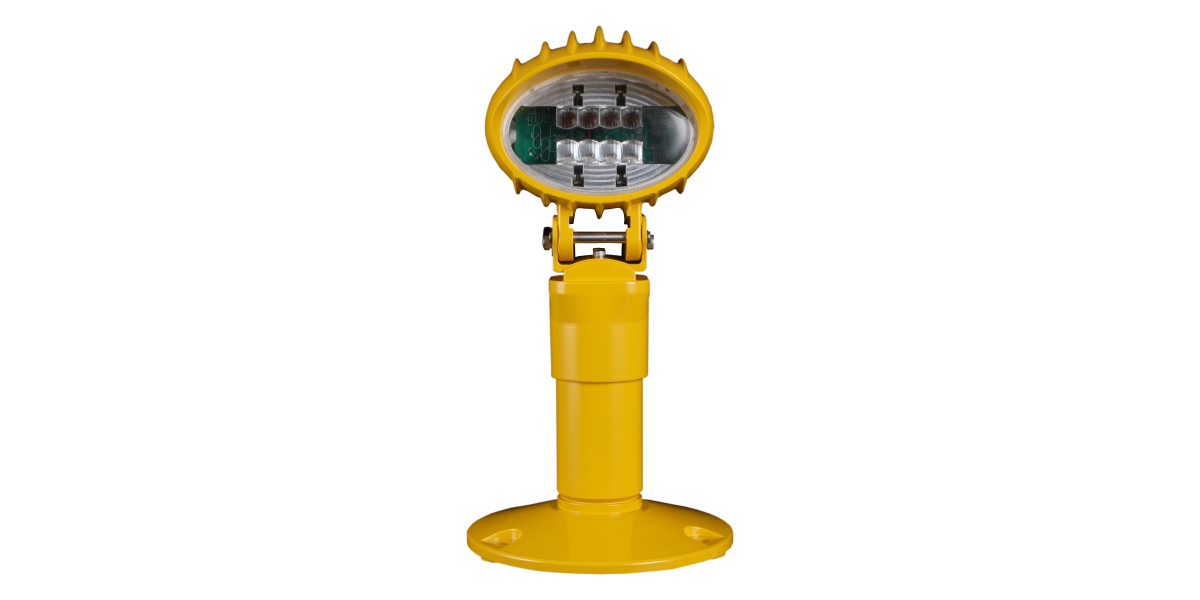

① Front Cover

② Sealing Ring

③ Optic Module

④ LED Driver Module

⑤ Back Cover

⑥ Power Supply Cable

⑦ Adjustable Installation Kit







On 12’’ Deep Base










              On Extension Pole                      On Approach mast












Accessories/accessory tools
Downloads

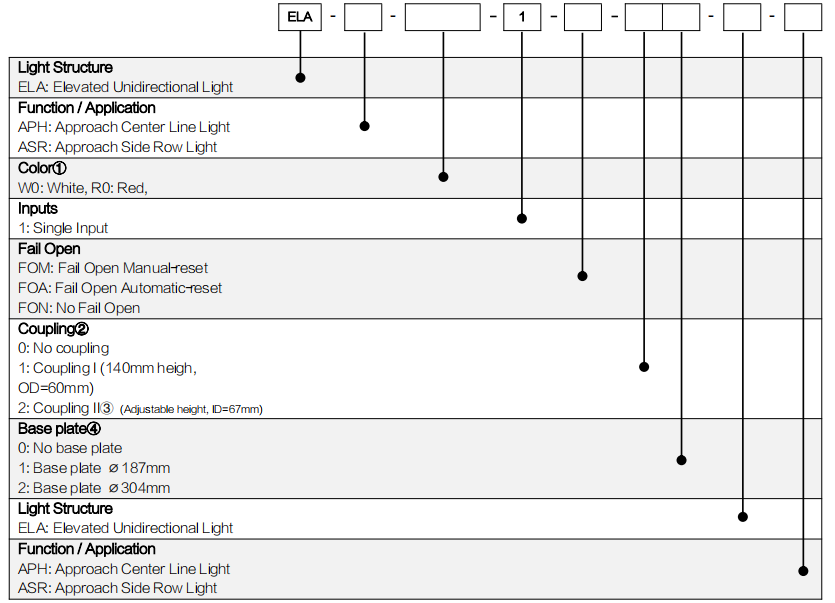

Order Code


Date Sheet
Product Manuals
Certificate
ELA-APH&ASR
DOWNlOAD FILES
Zoomed Image

About us

HDK stands out with its cutting-edge design concepts, reliable manufacturing process, and comprehensive after sales support

2003-The company was founded in Beijing and focused on the airfield groundlighting and power supply system in the airfield area.
2012-The service center was established to explore customized solutions,supplchain, inventory and after-sales service.
2016-The R&D and manufacturing base for airfield ground lighting system wasestablished in Wuhan Optics Valley.
2020-Our lights were fully promoted to the civil aviation industry and militaryairports.
2022-The shipment of LED airfield ground lights reached 40,000 sets,and thecustomers included many 4F/4E hub airports at home and abroad.
AGL manufacturer with R&D/manufacturing/solution/technical servicecapability
We take products as the foundation and constantly provide high-qualityservices for the industry
