12” Light Base
Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code
Characteristic
Parameter





12” Shallow Base

12” Deep Base

Type

L-868

L-868

Model

AT-12SB

AT-12DB

Height

155mm

300mm~500mm

Material

Aluminium Alloy

Aluminium Alloy

Static Load Resistance

>31.7kg/cm2

>31.7kg/cm2

Accessories

Including M10 bolt×6, o-ring seal 12”×1

Including M10 bolt×6, o-ring seal 12”×1

* Outlets can be customized


Exterior

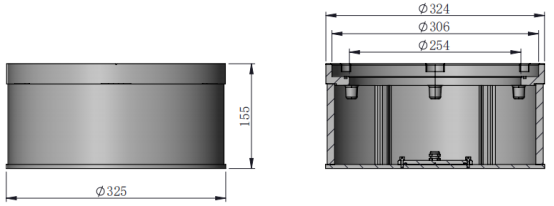

12 Shallow Base




图片.png  图片.png

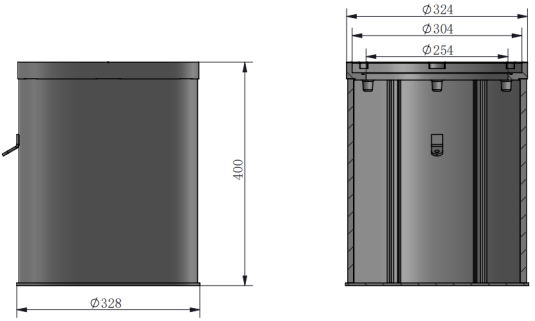

12 Deep Base




图片.png    图片.png

Accessories/accessory tools
Downloads
Order Code
Date Sheet
Product Manuals
Certificate
