8” Light Base
Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code
Characteristic
Parameter







8” Shallow Base

8” Deep Base

Type

L-868

L-868

Model

AT-8SB

AT-8DB

Height

150mm

200mm~500mm

Material

Aluminium Alloy

Aluminium Alloy

Static Load Resistance

>31.7kg/cm2

>31.7kg/cm2

Accessories

Including M10 bolt×2, o-ring seal 8”×1

Including M10 bolt×2, o-ring seal 8”×1

* Outlets can be customized

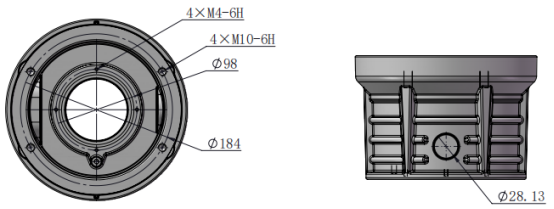

Exterior

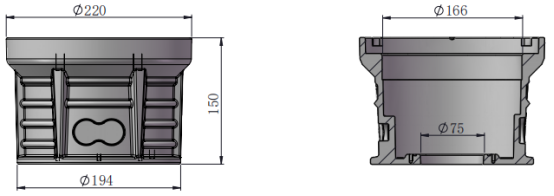

8 Shallow Base

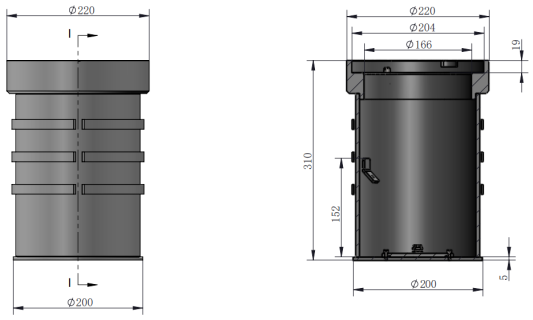

8 Deep Base



图片.png     图片.png



Accessories/accessory tools
Downloads
Order Code
Date Sheet
Product Manuals
Certificate
Light Base
