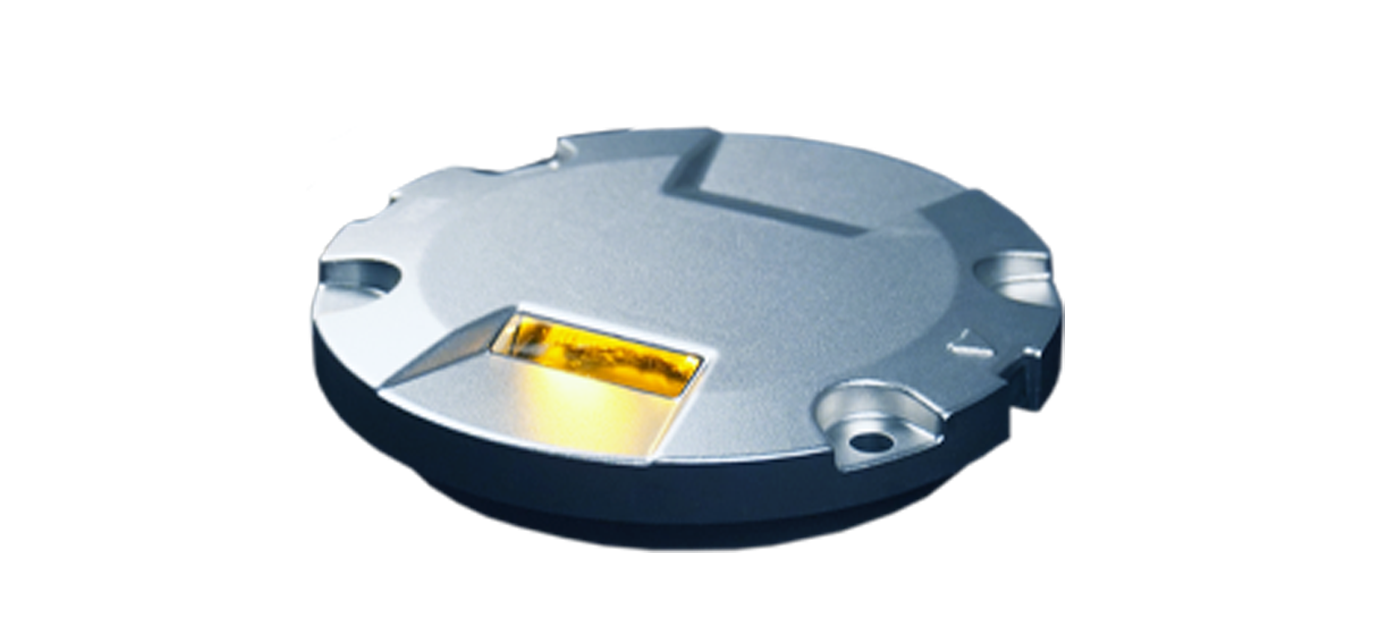

LED快速出口滑行道指示灯-嵌入式

特点参数外观配件/附件工具下载订货号

特点

▪ 超平表面-高出道面仅3.5mm

▪ 结构，电气坚固可靠，静态荷载及抗冲击能力优秀

▪ 构造灵巧-可适配内部空间狭小的卤素灯具底座

参数

结构参数
灯体直径		203mm
法兰厚度		19mm
高出道面		3.5mm
静态荷载能力		20t
水平剪切力		1.7t
包装尺寸		250mm×235mm×110mm
净重		2.8kg
毛重		3.1kg
环境参数
操作温度		-55℃-+55℃
存储温度		-55℃-+85℃
防护等级		IP68（GB7000.1）
湿度		0-100%
电气参数
输入电缆		FAA L823连接器1套
输入电流		2.8-6.6Aeff AC
功率因数		＞0.97
功率	跑道中线灯-白白	29W
	跑道中线灯-白红	20W
	快速出口滑行道指示灯-黄	15W
失效断开	手动恢复模式
	自动重启模式


跑道中线灯-白


跑道中线灯-红


快速出口指示灯-黄


色度坐标

外观


① 上盖模块

② 密封圈

③ 光学组件

④ 支撑板

⑤ 驱动模块

⑥ 下盖

⑦ 电缆


8英寸浅桶底座安装


12英寸深桶底座安装

配件/附件工具

下载

订货号

ILA

Light Structure

ILA: Inset 8" Light

Function / Application

RCL: Runway Center Line Lights

RETIL: Rapid Exit Taxiway Indicator Lights

Color- 1

R: Red, W:White ,Y: Yellow

Color- 2

R: Red, W:White ,Y: Yellow

Inputs

1: Single Input

2: Dual Input

Fail Open

FOM: Fail Open Manual-reset

FOA: Fail Open Automatic-reset

FON: No Fail Open

Prism

C: Conventional Prism

S: Sapphire Prism

Top Cover

S: Standard Cover

R: Reinforced Cover

Version

1: Version 1

ORDERING CODE NOTES

① We can provide color including

"WW","WR","W","R","Y"(Y for RETIL),

if you have any other requirements,we can customized.

② Sapphire prism available as an option. Figure1 ③ Reinforced cover. Figure2


Figure 1 Figure 2
